Product Specifications
Electrical Specifiactons
Effective Electrical Travel: 360deg (359.9deg)
Output Range: Ratio Output 10~90%Vin/ PWM 10~90%Duty
Absolute Linearity: +/-2%FS
Input Voltage: DC5+/-0.5V

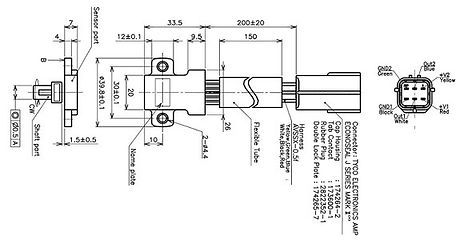

Mechanical Specifications
Total Mechanical Travel: 360deg Endless
Weight: Approx.30g
Enviromental Specifications
Category Temp.Range: -40~+100deg C
ESD (Case~Terminals): +/-15KV
ESD (Each Terminals): +/-15KV
IP Level: IP67
APPLICATION EXAMPLES
Boat Yacht
Remote control lever
AGV
Wheel angle control and adjustment
Wearable Robot
Arms/Legs joint angle monitoring
DATA SHEET(PDF)/ CAD DATA (DXF)/ CONTACT
HANDLING INSTRUCTION
This product can not be used for measurements of the resistance value.
This product may be influenced by an external magnetic field.
Use thsi prodcut in an environment protected from ESD.
